Rock Wool Production Line with 1200-2400mm Length and Class A1 Fire Resistance Including Overseas Engineer Support

Rock Wool Production Line with 1200-2400mm Length and Class A1 Fire Resistance Including Overseas Engineer Support

Marchio:	Greenson
Moq:	1
prezzo:	US $2000000-4000000
Condizioni di pagamento:	L/c, t/t

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Hebei

Nome prodotto:

Made in China Linea di produzione di pannelli in lana di roccia Fabbrica di macchine per la produzio

Parole chiave:

Impianto per la produzione di pannelli in lana di roccia

Capacità produttiva:

10000-50000 tonnellate/anno

Densità:

100-200 kg/m3

Processo principale:

miscelazione, modellazione, taglio in acqua, asciugatura

Resistenza al fuoco:

Classe A1

Lunghezza:

1200-2400mm

Servizio post-vendita:

Ingegneri disponibili per servizi macchinari all'estero

Evidenziare:

1200-2400mm Length Rock Wool Production Line

Class A1 Fire Resistance Mineral Wool Board Production Line

Overseas Engineer Support Rock Wool Panel Production Line

Descrizione del prodotto

Made In China Rock Wool Panel Production Line Mineral Wool Making Machine Factory

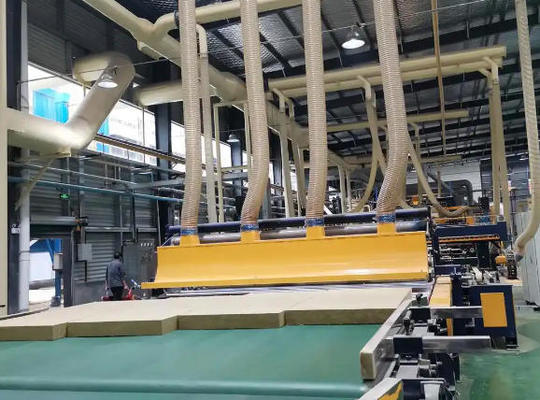

The raw materials used in rock wool production include basalt, dolomite, binders, etc. The raw materials are loaded into the hopper by the elevator, and the melting furnace is heated and melted into the melt flow tank. The lava flow is cooled and spun into fibers by the centrifuge, and then sprayed into the fiber molding room. The binder is added during the spraying process, and the fibers are heated by the negative pressure wind. Pull down to the mesh belt to form the original felt. The mesh belt transports the original felt to the pendulum cloth machine to swing the cloth. The original felt after the swing cloth is transported to the curing furnace by the cloth machine, and runs forward between the upper and lower chain belts. The hot air blower blows the hot air into the curing furnace. The cotton felt in the furnace is solidified, and the solidified products are cut, first longitudinally cutting, and then transversely cutting, and the finished product is packaged and put into storage.

Product Parameters

Specification	Details
Application	Manufacture Rock Wool Blanket, Rock Wool Board
Capacity	10000tons/year, 20000tons/year, 30000tons/year, 40000tons/year, 50000tons/year, 60000tons/year, 70000tons/year, 80000tons/year
Raw materials	Basalt, dolomite, binders and so on
Main energy supply system	Raw coal energy supply system Power energy supply system Natural gas energy supply system

Frequently Asked Questions

Q: Where is the factory located?

A: We are located in Shijiazhuang, Hebei Province.

Q: What is your delivery time?

A: Usually, we make merchandise inventory. If we have the products in stock, the delivery time is 30-60 days after receiving the deposit. If we don't have the products in stock, we will arrange the production immediately, with delivery time of 1-3 months depending on order quantity.

Q: How can we ensure quality?

A: The final inspection is always carried out before shipment.

Q: How to install the equipment after purchasing?

A: Professional designing, manufacturing, installation and commissioning team. On-site installation and commission until the production of qualified products.

Q: Do you offer a guarantee?

A: Yes, we guarantee our product for one year. Provide after-sales service support with technical support.
