linea di produzione delle mattonelle del soffitto del gesso

Automatic 60x60cm PVC Coated Gypsum Ceiling Tile Making Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Automatic 60x60cm PVC Coated Gypsum Ceiling Tile Making Machine with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Marchio:	LVJOE
Numero di modello:	1300fm
Moq:	1 riga
prezzo:	US $20000-200000
Condizioni di pagamento:	L/c, t/t
Capacità di approvvigionamento:	10 righe all'anno

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Hebei ， China (Mainland)

Certificazione:

ISO CE

Nome prodotto:

Macchina per la produzione automatica/semiautomatica di piastrelle per soffitto in gesso rivestito i

Parole chiave:

Macchina per la produzione di pannelli in cartongesso laminato in PVC

Tipo di scheda finito:

Scheda gesso laminata in PVC

Laminazione efficace:

1300 mm

Controllo elettrico:

Sistema PLC

Capacità produttiva:

2-6 milioni mq/anno

Servizio post-vendita:

Ingegneri disponibili per il servizio

Tipo di colla:

Colla dell'acqua per film in PVC

Imballaggi particolari:

Imballaggio standard

Capacità di alimentazione:

10 righe all'anno

Evidenziare:

60x60cm Gypsum Ceiling Tile Making Machine

1300mm Effective Laminating PVC Coated Gypsum Board Machine

2-6 Million Sq.m/year Gypsum Board Lamination Machine

Descrizione del prodotto

Automatic/Semi-Automatic 60x60cm Drywall PVC Coated Gypsum Ceiling Tiles Making Machine

This advanced machine is designed for laminating fiber glass, paper, PVC film and aluminum foil on gypsum board to produce high-quality ceiling tiles and partition wall panels.

Key Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

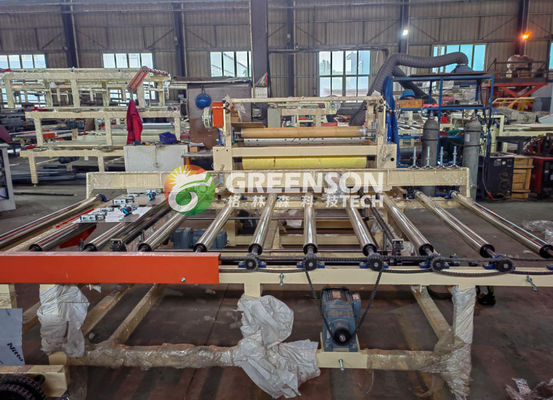

Automatic Gypsum Board Feeding Machine

Cylinder pushes gypsum board from stack lift platform to conveyor roll
Max. Load-bearing: 3000kg
Stroke: 1500mm
Min. Height: 620mm
Max. Height: 2000mm
Platform size: 1200*2400mm

Automatic Cutting Machine

Dual cutting system: vertical/longitudinal and horizontal cutting
Equipped with dust collector system
Converts 1.2*2.4m boards to 603*603mm/595*595mm tiles
Cutting speed: 15m/min
Cutting knives: Vertical/longitudinal: 3 blades; Horizontal: 5 blades
Overall power: 17.15KW

Technical Specifications

Sheet thickness: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-6 million Sq.m
Film material: PVC film, aluminum foils, decorative material
Board sheet material: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Cutting mode: Lengthways: 3 blades, Horizontal: 5 blades
Overall dimension: Length: 56000mm, Width: 9200mm
Lamination mode: Double side or single side options
